Hitachi

iH-210



  • iH-210 is advanced banknote processing machine with maximized efficiency technology with 3 pockets banknote sorter.

Features

Compact Size with Full Function 3 Pockets

  1. Similar size to 2 pockets machine
  2. Saving workspace and minimize the cash processing movement
  3. Selective pocket for fitness options: ATM, FIT, Reject

Advanced Technologies

  1. Full color Dual CIS Sensor, Equipped with a range of counterfeit detection technologies
  2. Capture and Record of OCR, MICR and Barcode
  3. Can be installed more than 32 currencies
  4. Multi-currency mode (Up to 16 currencies can be counted at once)
  5. Reliable Fitness sorting/ Excellent tape detection performance

User-Friendly System

  1. 2-Teller mode/ Multi-user mode
  2. 5“ Full LCD Color Touch Screen (Angle adjustable)

Remote monitoring & management system

  1. Related Application: Smart Integration Manager (SIM)

Specifications

Currency Up to 32 currencies including Mix & CNT
(Mix & Multi up to 16 currencies)
Operating Speed Counting Max. 1,300 Notes/min
Value/ Fitness Counting Max. 1,200 Notes/min
Serial NumberM
Recognition & Printing		 Max. 1,000 Notes/min
Pocket Capacity Hopper Max. 1,000 Notes
Stacker x 2 Max. 300 Notes (Mint condition)
Reject Pocket x 1 Max. 200 Notes (Mint condition)
Display 480 x 272 TFT LCD (5 inch), Touch Screen
Dimensions 382 (W) x 417 (D) x 340 (H) mm
Weight Approx. 21 Kg
User Interface LAN, USB(Serial) x 2, USB(host), RS232C x 3
Power Supply 100 - 240V ~ 50/60Hz
Sensor Information Full Color Dual CIS
Reflection (R, G, B, IR, UV) x 2, Transmisson(IR)
Magnetic Sensor(Full Line)
Thickness Detection Sensor(12 Channel)
UV Reflection, Transmission (8 Channel)
Options External LCD Display, Thermal Printer

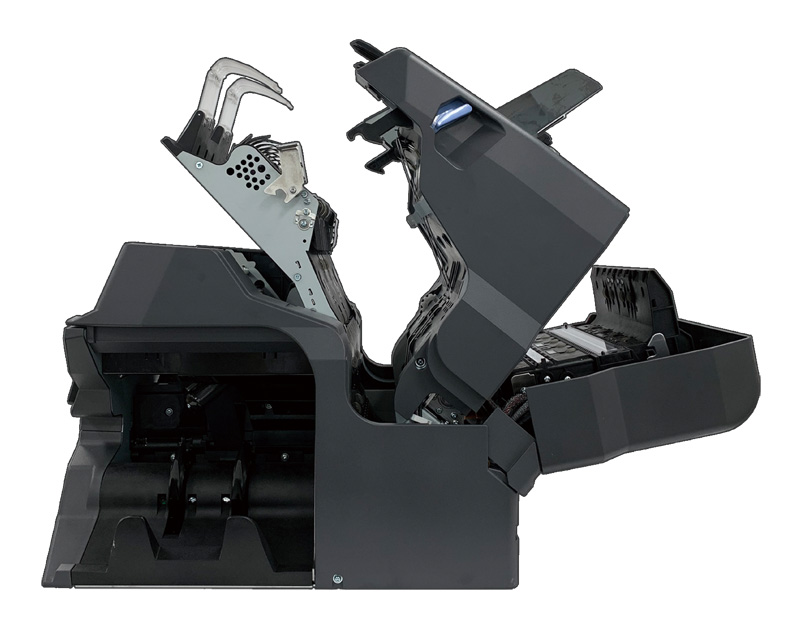

Detail Image
